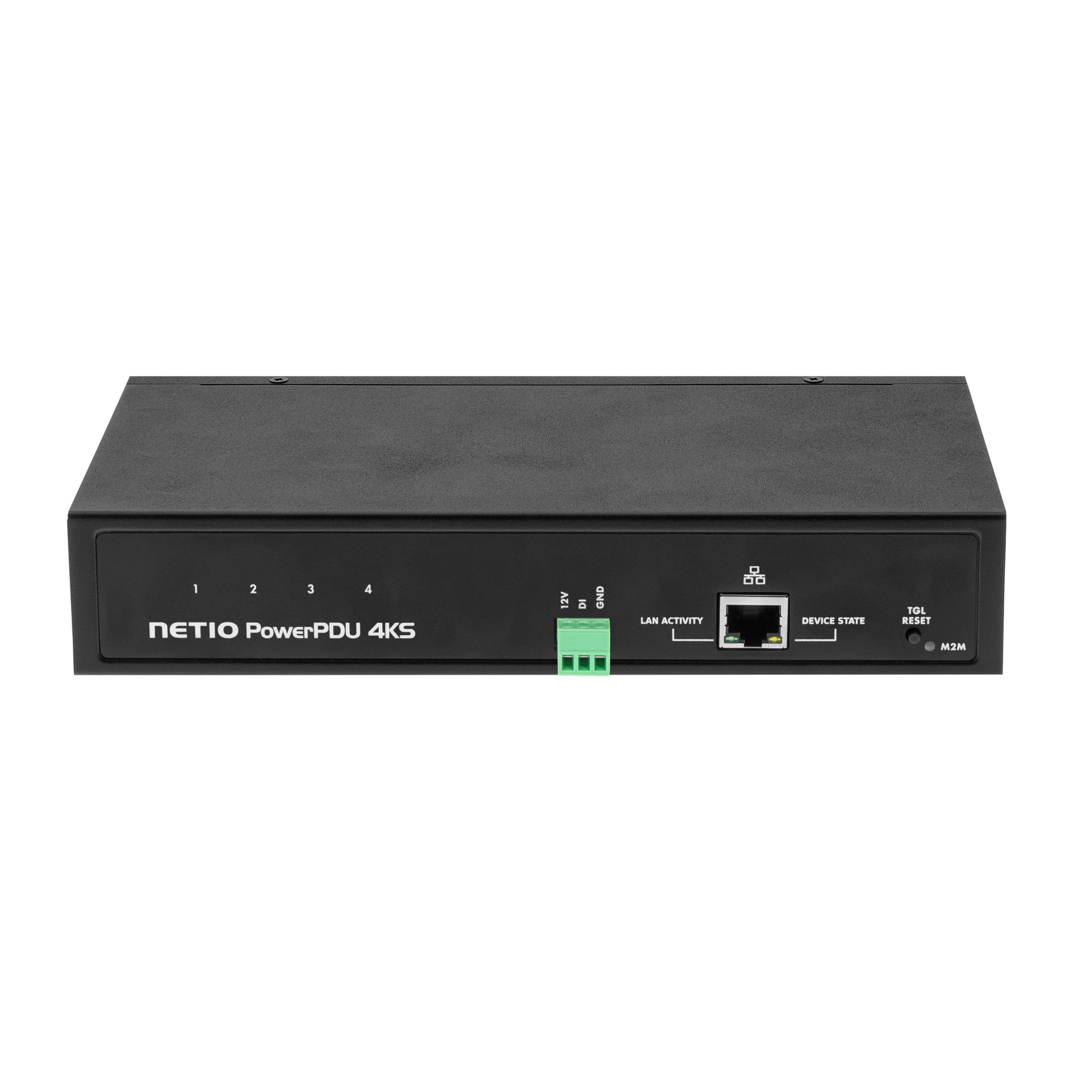

PowerPDU 4KS
⁦PowerPDU 4KS⁩ – תמונה ⁦2⁩
⁦PowerPDU 4KS⁩ – תמונה ⁦3⁩
⁦PowerPDU 4KS⁩ – תמונה ⁦4⁩
⁦PowerPDU 4KS⁩ – תמונה ⁦5⁩
⁦PowerPDU 4KS⁩ – תמונה ⁦6⁩
⁦PowerPDU 4KS⁩ – תמונה ⁦7⁩

PowerPDU 4KS

1,658.00 ₪

פס שקעים מנוהל ומנוטר 4 יציאות, יכולת שליטה מרחוק On/Off, קיבוע במסד ויכולת התממשקות API

קטגוריה:

תיאור

PowerPDU 4KS

PowerPDU 4KS is a smart PDU (Power Distribution Unit) with 4 metered & switched power outputs (4x IEC-320 C13) and 1x DI (Digital Input).

The PowerPDU 4KS PDU (Power Distribution Unit) measures power consumption (A, kWh, TPF, W, V, Hz) and switching On/Off each power output individually. PDU supports local Ping & Power WatchDog and Scheduler functions.
Each output can be switched manually over the web, the NETIO Cloud service, or with a Mobile App (Locally or via NETIO Cloud).
The DI (Digital Input) can control the outputs or count S0 pulses (ext. power metering).
PDU supports Open API for 3rd party integration (http JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, …).
With the NETIO Cloud service, the outputs can be controlled from anywhere. The NETIO Cloud is a paid service with welcome credit for newly connected devices. It’s SSL secured cloud solution, servers are located in Europe.
AV drivers make it easy to connect NETIO sockets to professional Audio/Video control systems such as Neets, Crestron, Control4 etc.

  • Each output can be controlled separately
  • OPEN API: MQTT-flex, Modbus/TCP, Telnet, JSON, XML, SNMP
  • Mobile app: NETIO Mobile2
  • Service: NETIO Cloud (secured by TLS)
  • Industrial features: Wide range of operating temperatures, PowerUp state, ZCS (Zero Current Switching)

Typical applications of remotely controlled power sockets

  • Remote restart (over the Web)
  • Energy savings
  • Switching power outputs on and off with a mobile app
  • Switching sockets on and off using the NETIO Cloud service
  • Controlling electrical sockets with a driver from multimedia applications (Crestron, Control4, RTI, BrightSign, …)
  • Open API MQTT cloud connection to portal applications (AWS, IBM Bluemix, MS Azure)

Open API

For Open API communication, one of the following M2M protocols can be active at a time:

  • Modbus/TCP
  • MQTT-flex
  • Telnet
  • URL API (http get)
  • JSON over HTTP
  • XML over HTTP
  • SNMP v1/v2
  • SNMP v3
  • HTTP(s) Push JSON
  • HTTP(s) Push XML

The SNMP protocol can always be used in parallel to other APIs.

Documentation for the protocols is available at the manufacturer’s website. The ANxx Application Notes provide useful deployment guidance.

Regardless of which Open API protocol is being used, the PowerPDU 4KS can always be controlled from its web interface and from the NETIO Cloud service at the same time.

Professional product

A smart PDU with LAN connectivity, PowerPDU 4KS is designed for professional use.

  • Wide operating temperature range from -20°C to +65°C
  • PowerUp state – the state of the outputs after the device is powered up is configurable (On/Off/Last)
  • PowerUp sequence – outputs are switched on with defined timing
  • Simple installation into a 10” or 19” cabinet as a 1U device or vertically at a side
  • ZCS (Zero Current Switching) – the relay is switched when the current crosses zero. This allows switching devices with a high inrush current.

– Ping Watchdog – autonomous ping restarter

– Power Watchdog – IDLE mode detection & restarter

Product packages with different power cable type included

Product Included power cable Voltage / current
PowerPDU 4KS EU Europlug – IEC-320 C13 230V / 10A
PowerPDU 4KS CH Type J – IEC-320 C13 230V / 10A
PowerPDU 4KS UK Type G (UK) – IEC-320 C13 230V / 10A

Related accessories

  • NETIO RM1 for installing one unit into a 19” cabinet as a 1U device
  • NETIO RM2 for installing two units into a 19” cabinet as a 1U device
  • NETIO RM3 for installing vertically into a 19” cabinet
  • NETIO RM4 for universal installation into a 19” cabinet

NETIO PowerPDU 4KS

  • LAN (RJ45): Yes
  • WiFi: No
  • Web: Built-in web server
  • Online demo: Yes
  • FW upgrade: Yes – web
  • Mobile app: NETIO Mobile2
  • Cloud connection needed for installation: No
  • Control button for each output: No
  • Service: NETIO Cloud (paid service, secured by SSL)
  • M2M API protocols:
    • JSON over HTTP (default)
    • MQTT-flex (extended MQTT, SSL enabled)
    • HTTP Push JSON
    • HTTP Push XML
    • SNMP v1
    • SNMP v3
    • Modbus/TCP
    • XML over HTTP
    • URL API (http get) (Outputs only)
    • Telnet (Outputs only, backwards compatible with KSHELL)
  • Lua support: No
  • Scheduler function: Yes
  • IP WatchDog function: Yes
  • Power WatchDog: Yes
  • Sending e-mails: No
  • Event log: Yes (web)
  • Power input: IEC-320 C14
  • Mechanical Power Switch: Yes
  • Power output: 4x IEC-320 C13
  • Number of controlled outputs: 4
  • Number of metered outputs: 4
  • Device power consumption: Max 1.7 W
  • Interfaces: 1x DI (Digital Input) with 12V DC
  • Electrical measurements:
    • 4x Current [A]
    • 4x Consumption [kWh]
    • 4x Reverse Energy [Wh]
    • 4x Power [W]
    • 4x TPF (True Power Factor)
  • Frequency [Hz]
  • Voltage [V]
  • Phase [°]
  • Accuracy: <1% (25°C)
  • SPD – surge protection: Yes, type 3
  • Switching element: relay SPST-NO, ZCS
  • ZCS (Zero Current Switching): Yes
  • PowerUp state of outputs: On / Off / LAST state
  • Mechanical characteristics: 220 x 40 x 120 mm
  • Protection: IP30
  • Sound output: No
  • Temperature range: -20°C to +65 °C
